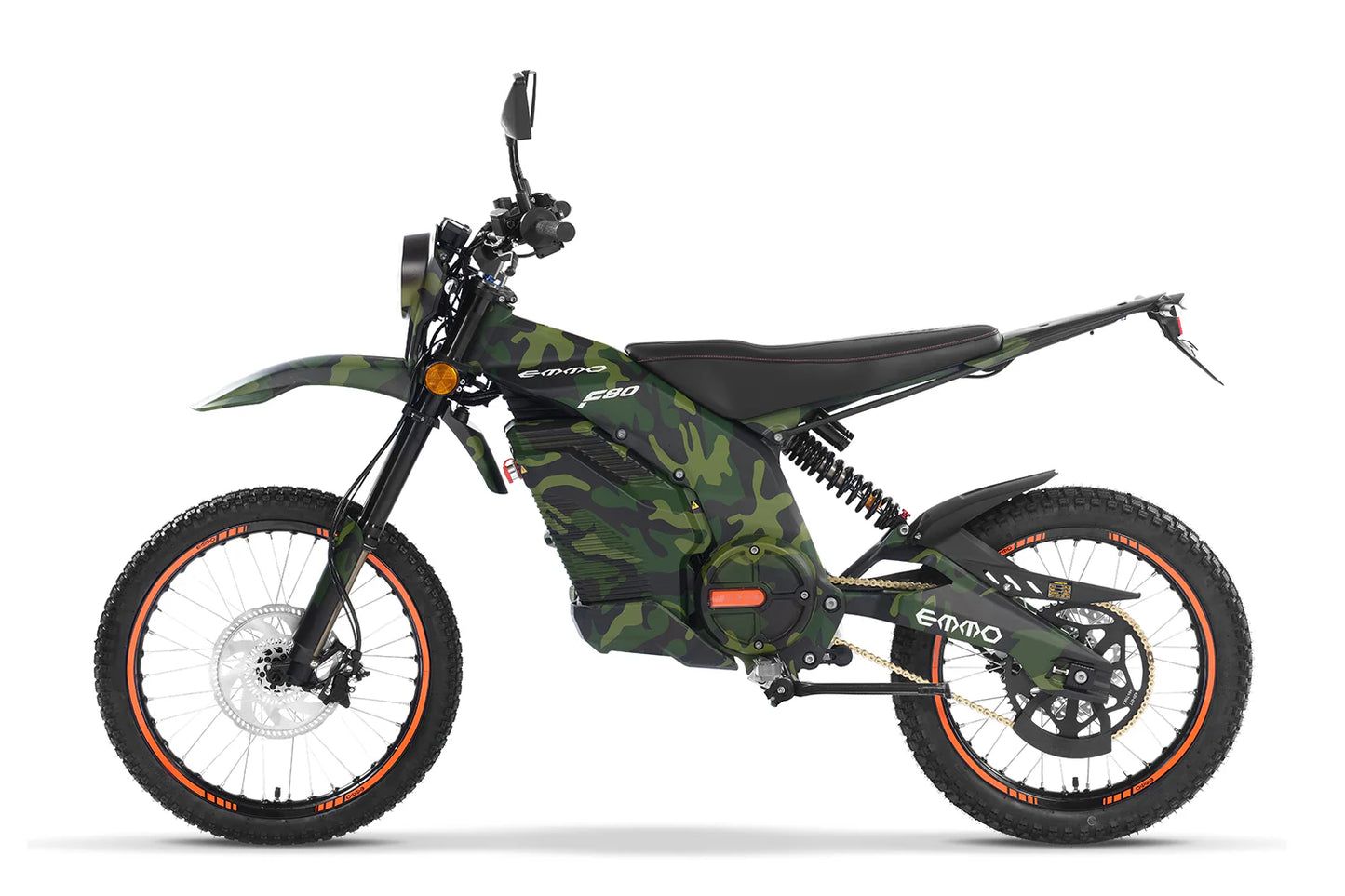

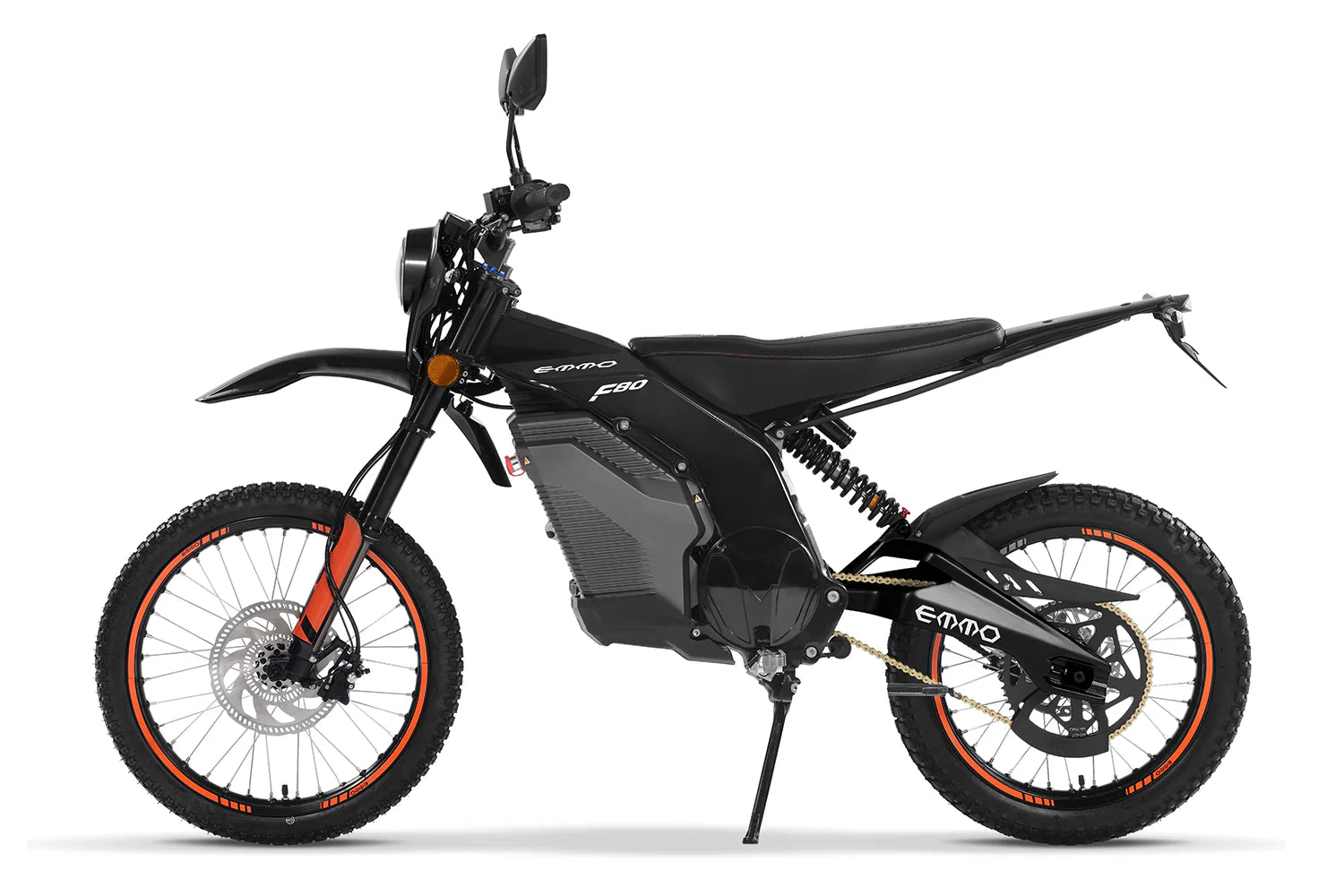

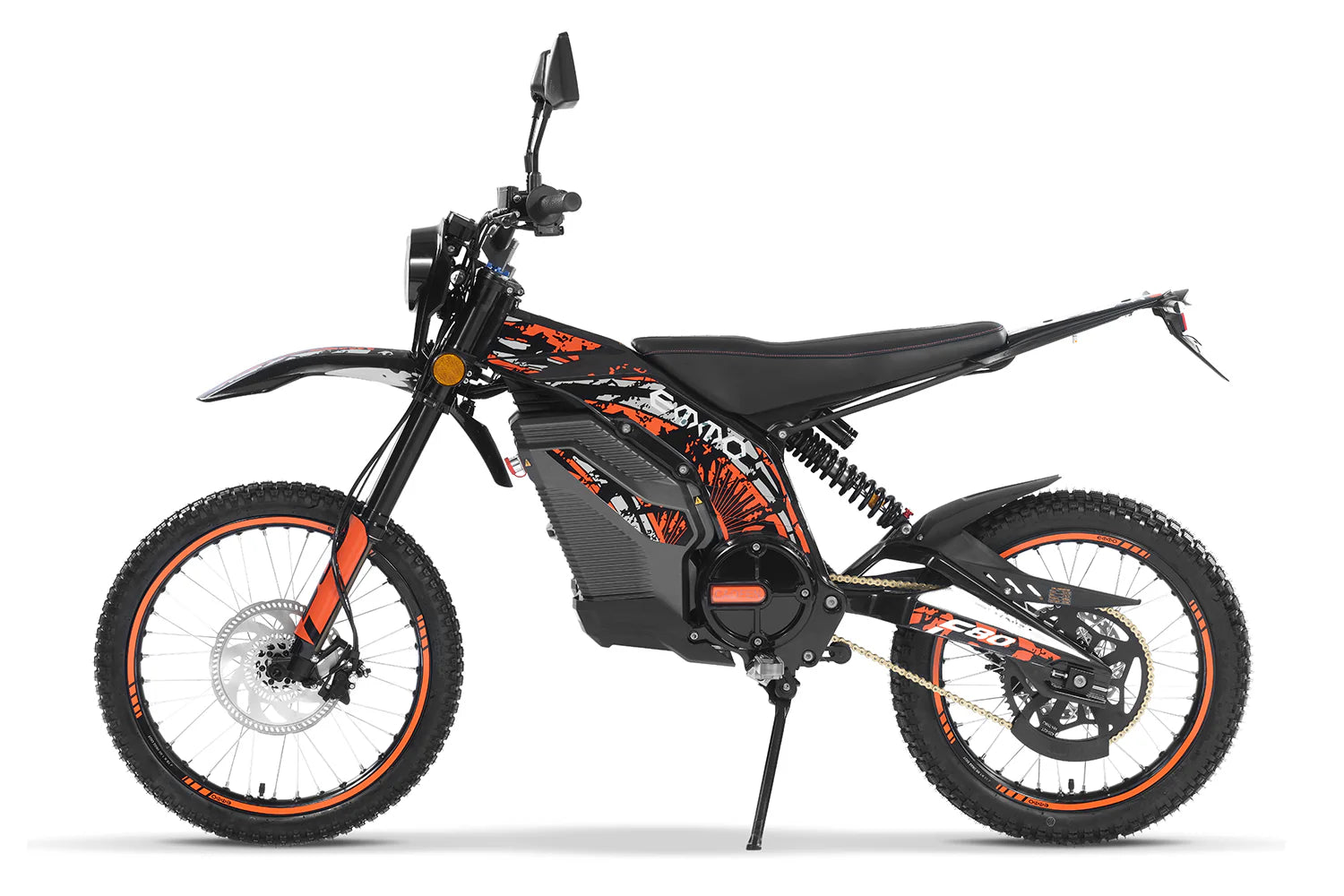

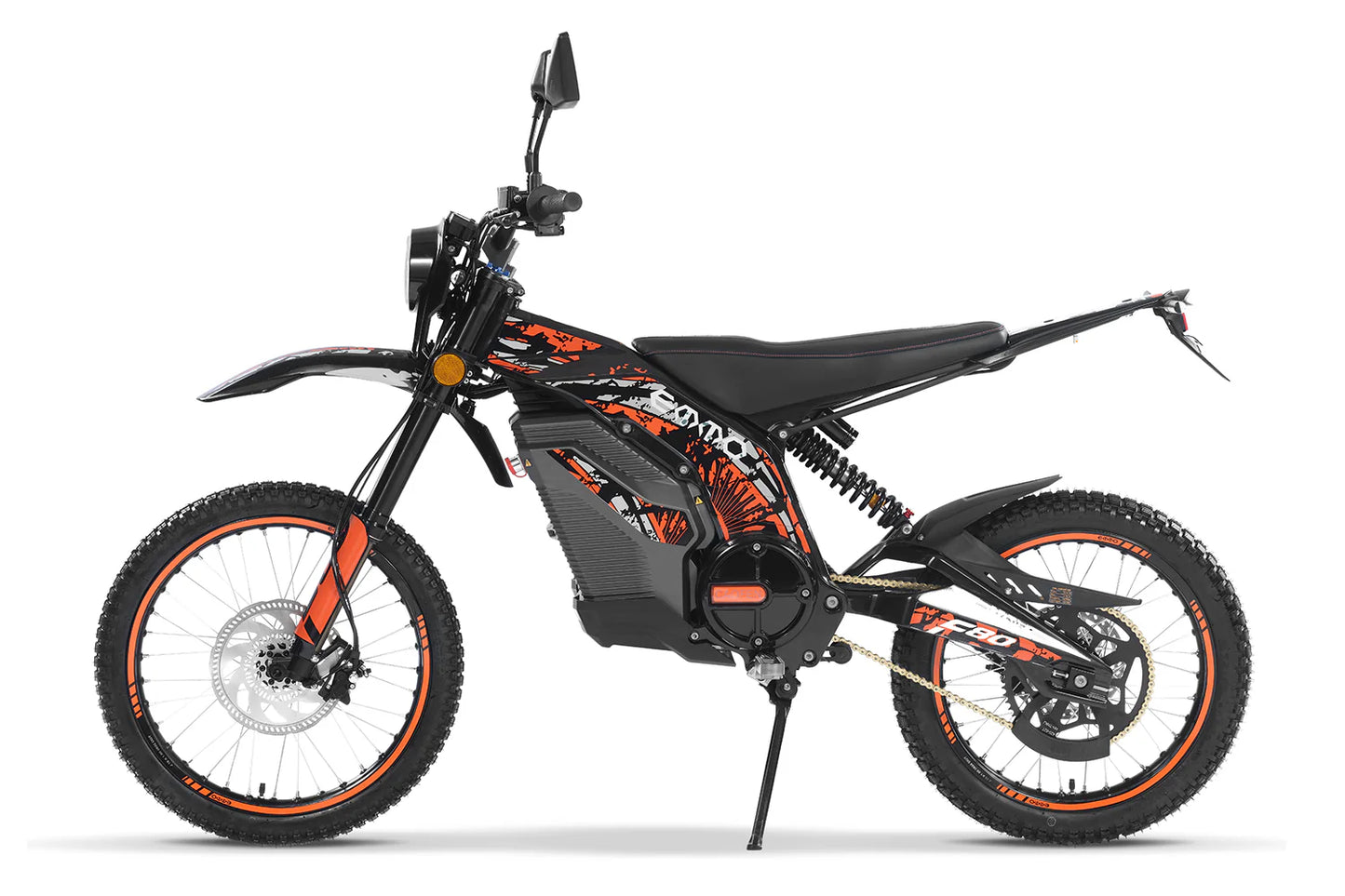

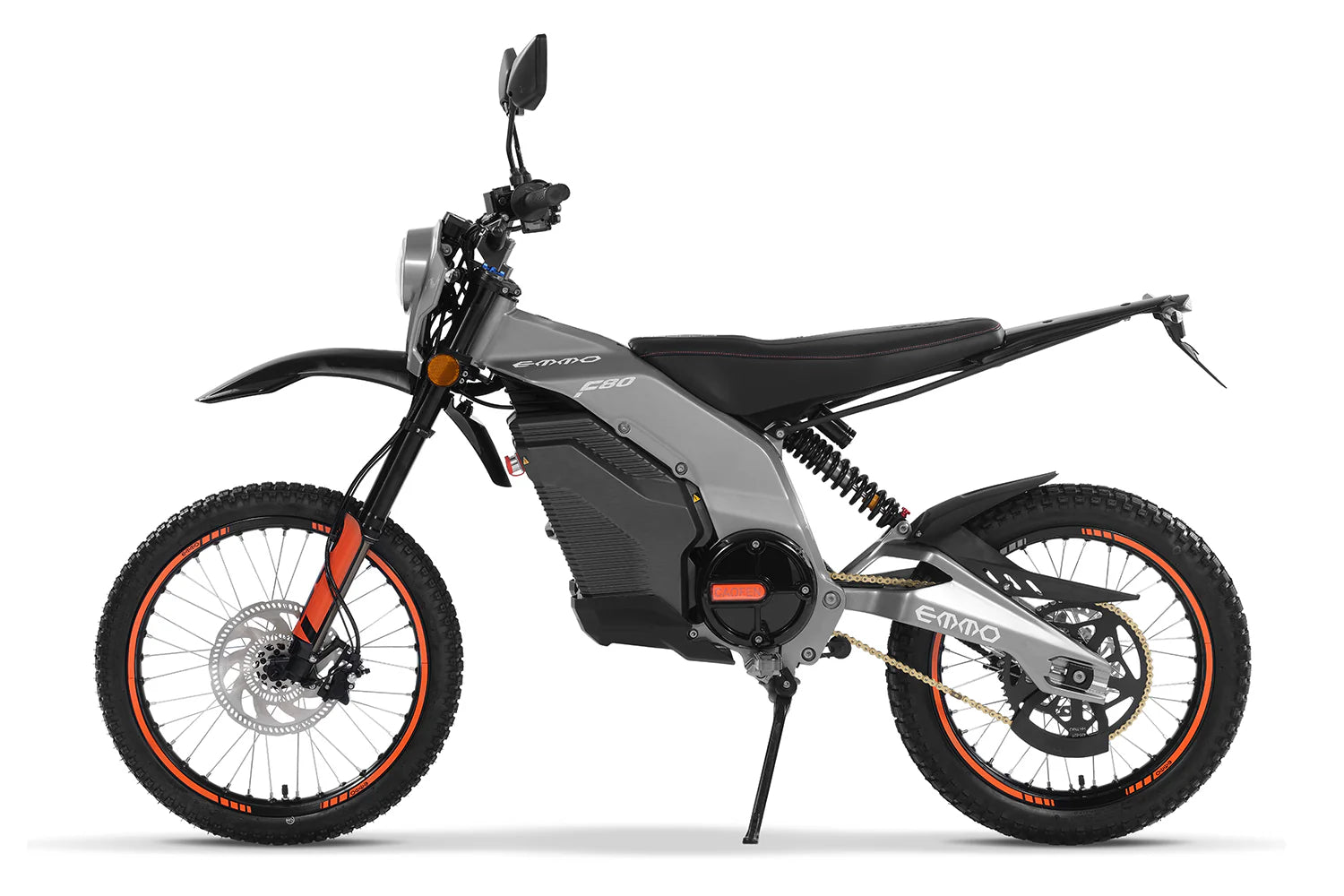

Emmo Caofen F80 Electric Dirt Bike - TRAIL DS-30
Emmo Caofen F80 Electric Dirt Bike - TRAIL DS-30
Couldn't load pickup availability
Tackle the Terrain with Emmo's First Ever Off-Road Electric Vehicle
Aluminum Unibody Frame
Discover the F80's Aluminum Unibody Frame, a high-strength chassis with 30% increased strength thanks to its zero-welding construction, providing exceptional off-road capabilities. With a lightweight design that boosts overall performance and ensures agility, paired with balanced weight distribution for stability on diverse terrains, this unibody frame elevates your riding experience.
Advanced Battery Temperature Control
The advanced immersive cooling system ensures superior thermal balance, reducing temperature rise by 50% during use. Riding it in the snow? No problem! The battery temperature control system allows for use in extreme cold conditions as low as -40 degrees. With patented technology enhancing battery life and performance, it guarantees worry-free enjoyment for the long journey ahead.
| Type | Light off-road |
| Motor Type | Permanent Magnet Synchronous Air-Cooled Motor |
| Rated Power/Peak Power | 4kW / 8kW |
| Peak Torque | 260 Nm |
| Top Speed | 85 km/h |
| Battery | 72V/30Ah LiFePO4 |
| Max Range** | 80 km (30km/h) |
| Charging Time | 2-3 hours |
| Climbing Angle | 40 Degrees |
| Riding Modes | 3 Speed w/ Boost |
| Regenerative Braking | Yes |
| Frame | High Strength Unibody Aluminum Alloy Frame |
| Swingarm | Unibody Aluminum Alloy Swingarm |
| Front Suspension | HKW 38mm Inverted Telescopic Fork: Adjustable preload and rebound, 200mm travel |
| Rear Shock Absorber | HKW Direct-Link Monoshock, Adjustable for pre-load and rebound with external reservoir, 85mm travel |
| Front Wheel | 19" wire-spoked rim |
| Rear Wheel | 18" wire-spoked rim |
| Front Tire | Nylon 2.25-19 Dual-Sport Tires |
| Rear Tire | Nylon 2.75-18 Dual-Sport Tires |
| Front Brake | Hydraulic Disc Brake |
| Rear Brake | Hydraulic Disc Brake |
| Instrumentation | LCD Digital Speedometer |
| Ignition | Remote Ignition |
| Headlight | DOT LED Headlight w/ high/low beam |
| Turning Signals | Front & Rear Turning Signals |
| Tail Light & Brake Light | LED Tail Light w/ Brake Light |
| Fenders | High Mount Front & Rear Mudguard |
| Rear View Mirrors | Yes |
| Steering Lock | Yes |
| Weight | 78KG |
| Load Capacity | 100KG |
| Vehicle Dimensions | 195×78.5×107 cm / 77"x31"x42" |
| Ground Clearance | 26.5 cm / 10 2/5" |
| Wheel Base | 130 cm / 51" |
| Seat Height | 84cm / 33" |
