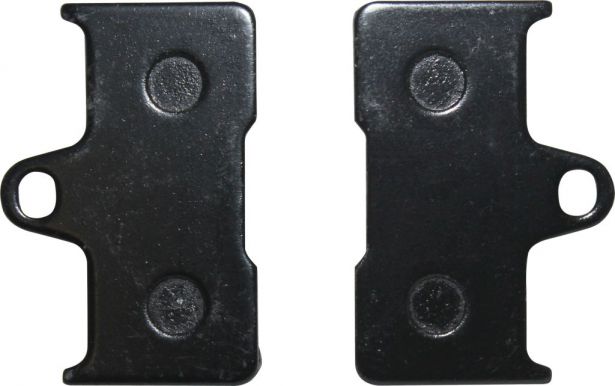

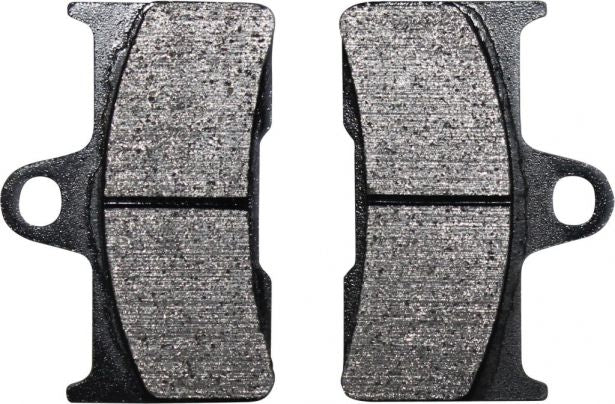

Brake Pads - CF Moto, Odes, CF188, 400cc, 500cc, 600cc, 625cc, 800cc, (2pcs)
Brake Pads - CF Moto, Odes, CF188, 400cc, 500cc, 600cc, 625cc, 800cc, (2pcs)
These CF Modo, Odes Brake Pads (2pcs) are typically found in the Hydraulic Brake / Brake System section of several part manuals. Commonly used for but not limited to CF188 / 400cc, 500cc, 600cc, 625cc, and 800cc engines. It is most popularly known for its use in CF Moto CF400AU CForce 450 X400 / CF400AU-L CForce 450L / CF500 / CF500 Atlas / CF500 CF188 / CF500 CF188-B / CF500 CForce X5 / CF500 XL ONE / CF500-2 CForce X5 ATV / CF500-2A CForce X5 / CF500-3 UForce U500 U5 / CF500-5 Rancher / CF500-5A / CF500-5B X500 / CF500-5C / CF500-A CForce X5 / CF500-D CForce 500 / CF500-E / CF500ATR-A CForce 550 / CF500AU-6L CForce 550 / CF500AU-7L CForce 550 / CF500AU-7S CForce 550 / CF600-5 Rancher 600 UForce U6 / / / CF625-B CForce 625 / CF625-B X600 / CF625-C Terralander 625 X6 / CF800-2 CForce 800 X8 / CF800ATR CForce 800 X8 / CForce 450 ONE EPS / CForce 450 XL EPS / CForce 500 ONE / CForce 520 / Terrain 500 / CForce 800 EPS / Terralander 800 CForce 800 / Terralander 625 CForce 600 / Rancher 500 UFroce 500 / Terralander 500 CForce 500 / CF500-A Basic, CCM LX700-4A, Diamo Adventure 500, Explorer Atlas 500 / Atlas 500 2x4 COMPACT / Atlas 500 4X4 XL / Atlas 500 4x4 EDITION / Everest 500 4X4 XL / Everest 500L ATV / Grison 625 4X4 Deluxe / Grumbler 500, GOES 520 CUV UTX / 520/520 Max / G520 (QUAD) / G520 UTX (Side x Side) / G525 / G525 MAX / G620I / G625i / G625i MAX / G625i UTX / GE – SSV, Journeyman Gladiator RX510 / Gladiator RX530 / Gladiator UTV 530 / Gladiator X450 / Gladiator X5 / X5-A Valex / Gladiator X520 / Gladiator X550 /Gladiator X6 / X6-A EFI / Gladiator X8 / Gladiator X8 V-Twin EFI, ODES 800cc Dominator, Quadzilla 500 CUV E 2x4/4x4 / 500 ES 4x4 /CUV 500 Side x Side / QZ 500 E/ES 4x4 /RL 500 MKII Buggie / RS5 4WD / RS6 EFI 4WD / RS6 LWB / RS6 LWB CF625-B / RS6 LWB CF625-C / RS6 SWB / RS6 SWB CF625-B /RS6 SWB CF625-C / RS6 Terrain / RS6 Terrain CF625-B / RS6 Terrain CF625-C / Terrain 450 CForce 450S / Terrain 500 ATV / X8 (4x4/EFi / Z6 4x4, WT Motors WT500 Alaska Quad / WT500 Ram, as well as many other brands of ATVs, UTVs (side-by-side), dirt bikes, scooters, go karts (buggies), and engines with alternative profile names.
Approximate dimensions:
- Total Length: 65.8mm (2.59”)
- Total Width: 44.2mm (1.74”)
- Total Width (excluding tab): 29.5mm (1.16”)
- Alignment Hole: 7.8 x 6.4mm (0.30 x 0.25”)
Includes Part Numbers:
- 9010-080510, 901-08.05.10 “REAR BRAKE PAD”
Manufacturer Part Numbers:
- CF Moto Part Numbers: 9010-0805A0, 901-08.05.10, 9010-080510 “REAR BRAKE PAD COMP.” or REAR BRAKE PAD” or “REAR BRAKE PAD ASSY”
- Odes Part Number: 09-0601008
- Diamo Part Number: 08-038-2158 “REAR BRAKE PAD”
- GOES Part Numbers: 9010-080510, 9010-0805A0 “REAR BRAKE PAD”
- Journeyman Part Number: 9010-0805A0 “REAR BRAKE PAD”
- Quadzilla Part Numbers: 901-08.05.10, 9010-0805A0 “REAR BRAKE PAD ASSY”
- Explorer Part Number: 9010-0805A0 “REAR BRAKE PAD”
